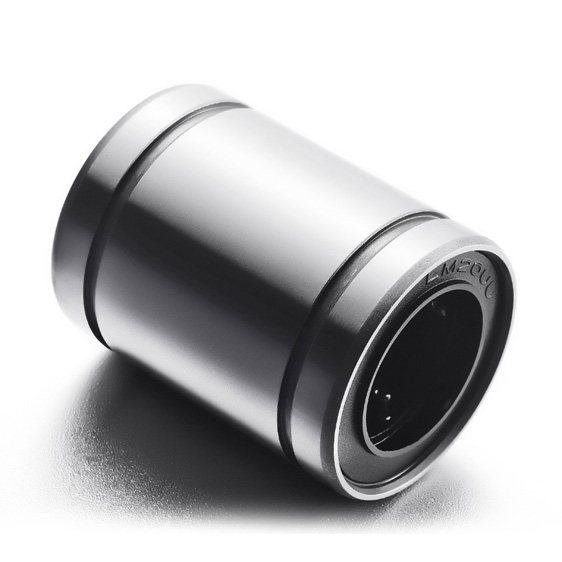

標準型-歐洲標準
發布時間：2018/12/24

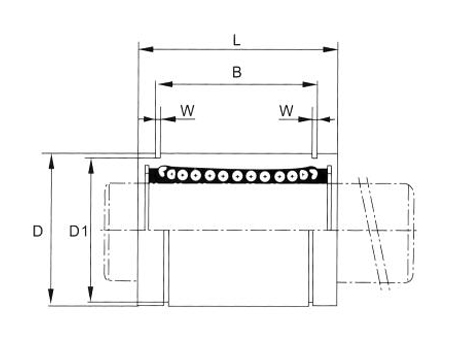

| 型號 | 球例數 | 重量?（g） | 主要尺寸 | 徑向?跳動 | 基本額定載荷 | ||||||||||
| 內徑 | 內徑 | 外徑 | 外徑 | 長度 | 長度 | 外止動槽 | 外止動槽 | 外止動槽 | W | (MAX.) | C(kgf) | Co(kgf) | |||
| dr | 公差 | D | 公差 | L | 公差 | B | 公差 | D1 | |||||||
| LME3 | 4 | 1.35 | 3 | 0?+0.008 | 7 | 0?-0.008 | 10 | 0?-0.12 | - | - | - | - | 0.01 | 7 | 11 |
| LME4 | 4 | 1.9 | 4 | 0?+0.008 | 8 | 0?-0.008 | 12 | 0?-0.12 | - | - | - | - | 0.01 | 9 | 13 |
| LME5UU | 4 | 11 | 5 | 0?+0.008 | 12 | 0?-0.008 | 22 | 0?-0.20 | 14.5 | 0?-0.20 | 11.5 | 1.1 | 0.012 | 21 | 27 |
| LME8UU | 4 | 20 | 8 | 0?+0.008 | 16 | 0?-0.008 | 25 | 0?-0.20 | 16.5 | 0?-0.20 | 15.2 | 1.1 | 0.012 | 27 | 41 |
| LME10UU | 4 | 29.5 | 10 | 0?+0.008 | 19 | 0?-0.009 | 29 | 0?-0.20 | 22 | 0?-0.20 | 18 | 1.3 | 0.012 | 38 | 47 |
| LME12UU | 4 | 41 | 12 | 0?+0.008 | 22 | 0?-0.009 | 32 | 0?-0.20 | 22.9 | 0?-0.20 | 21 | 1.3 | 0.012 | 52 | 79 |
| LME16UU | 5 | 57 | 16 | 0.008 | 26 | 0?-0.009 | 36 | 0?-0.20 | 24.9 | 0?-0.20 | 24.9 | 1.3 | 0.012 | 59 | 91 |
| LME20UU | 5 | 91 | 20 | 0.008 | 32 | 0?-0.011 | 45 | 0?-0.20 | 31.5 | 0?-0.20 | 30.3 | 1.6 | 0.015 | 88 | 140 |
| LME25UU | 6 | 215 | 25 | 0.01 | 40 | 0?-0.011 | 58 | 0?-0.30 | 44.1 | 0?-0.30 | 37.5 | 1.85 | 0.015 | 100 | 160 |
| LME30UU | 6 | 325 | 30 | 0.01 | 47 | 0?-0.011 | 68 | 0?-0.30 | 52.1 | 0?-0.30 | 44.5 | 1.85 | 0.015 | 160 | 280 |
| LME40UU | 6 | 705 | 40 | 0.011 | 62 | 0?-0.013 | 80 | 0?-0.30 | 60.6 | 0?-0.30 | 59 | 2.15 | 0.017 | 220 | 400 |
| LME50UU | 6 | 1130 | 50 | 0.011 | 75 | 0?-0.013 | 100 | 0?-0.30 | 77.6 | 0?-0.30 | 72 | 2.65 | 0.017 | 390 | 410 |
| LME60UU | 6 | 2050 | 60 | 0.011 | 90 | 0?-0.015 | 125 | 0?-0.30 | 101.7 | 0?-0.40 | 86.5 | 3.15 | 0.02 | 480 | 810 |
