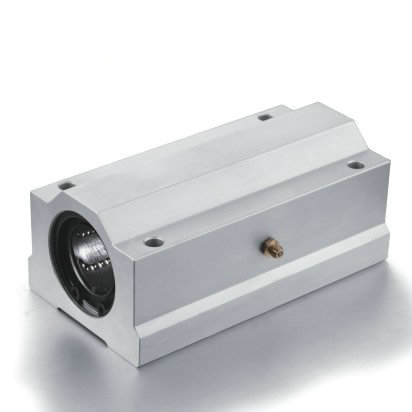

加長型-亞洲標(biāo)準(zhǔn)
發(fā)布時間：2018/11/24
| 型號 | 軸徑 | 主要尺寸 | 安裝尺寸 | 重量 (KG) | |||||||||||
| H | E | W | L | F | G | T | B | C | K | S1 | S2 | I | |||
| SC8L | 8 | 11 | 17 | 34 | 58 | 22 | 18 | 6 | 24 | 42 | 5 | M4 | 3.4 | 8 | 0.1 |
| SC10L | 10 | 13 | 20 | 40 | 68 | 26 | 21 | 8 | 28 | 46 | 6 | M5 | 4.3 | 12 | 0.18 |
| SC12L | 12 | 15 | 21 | 42 | 70 | 28 | 24 | 8 | 30.5 | 50 | 5.75 | M5 | 4.3 | 12 | 0.2 |
| SC13L | 13 | 15 | 22 | 44 | 75 | 30 | 24.5 | 8 | 33 | 50 | 5.5 | M5 | 4.3 | 12 | 0.23 |
| SC16L | 16 | 19 | 25 | 50 | 85 | 38.5 | 32.5 | 9 | 36 | 60 | 7 | M5 | 4.3 | 12 | 0.39 |
| SC20L | 20 | 21 | 27 | 54 | 96 | 41 | 35 | 11 | 40 | 70 | 7 | M6 | 5.2 | 12 | 0.49 |
| SC25L | 25 | 26 | 38 | 76 | 130 | 51.5 | 42 | 12 | 54 | 100 | 11 | M8 | 7 | 18 | 1.165 |
| SC30L | 30 | 30 | 39 | 78 | 140 | 59.5 | 49 | 15 | 58 | 110 | 10 | M8 | 7 | 18 | 1.43 |
| SC35L | 35 | 34 | 45 | 90 | 155 | 68 | 54 | 18 | 70 | 120 | 10 | M8 | 7 | 18 | 2.13 |
| SC40L | 40 | 40 | 51 | 102 | 175 | 78 | 62 | 20 | 80 | 140 | 11 | M10 | 8.7 | 25 | 3.09 |
| SC50L | 50 | 52 | 61 | 122 | 215 | 102 | 80 | 25 | 100 | 160 | 11 | M10 | 8.7 | 25 | 6.53 |
| SC60L | 60 | 58 | 66 | 132 | 240 | 114 | 94 | 30 | 108 | 180 | 12 | M12 | 10.7 | 25 | 9.29 |
